DXD-210水平式全自動包裝機
本機是在DXD—180水平式全自動包裝機的基礎上的改型升級產品，減少了製袋功能，操作者隻要將三邊封成形袋放置在機器的取袋部位，由機器完成自動取袋、列印日期、開袋、給計量裝置信號計量並落料、封口、輸出等功能。本機也可實現粉劑、顆粒劑、水劑和膏體的充填轉換。與物料接觸部分采用優質316不鏽鋼，其餘機器部件均采用優質304不鏽鋼製作。本機符合GMP要求。
主要參數：
1. 包裝袋寬度: 85mm – 210mm
2. 包裝袋高度：140mm – 280mm
3. 粉劑類包裝範圍：≤350g（根據物料比重會有不同）
水劑類包裝範圍：5ml -300ml (根據物料比重會有不同)
4. 電源： 380V 三相四線
5. 總功率： 3KW
6. 計量誤差：≤±1%
7. 生產速度：30-50袋/分鍾
8. 工作氣壓：0.6 -0.8MPa
9. 耗氣量：0.6 m3/min
10. 外形尺寸：3000mm ×1100mm ×2050mm
11. 機器重量：1000Kg

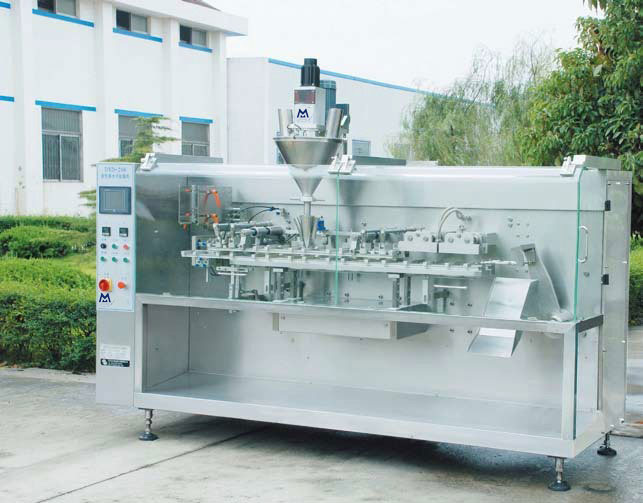

DXD-210 Automatic Horizontal Packing Machine
This machine is based on the advanced experience DXD-180 bag packing machine ,decrease the bag-making process.the operator just put the shaped- bag on the shelf ,then the machine can take the bag,print the date,open the bag and send the signal to the measure equipment,then filling the material ,sealing and output . It can realize the packaging of powder, granules, liquid and viscous liquid when changing packing heads. The parts contacting with the material adopt 316 high-quality stainless steel, the other parts use the 304 stainless steel. The whole machine accords to the GMP requirements, easy to disassemble and clean.
Technical parameters:
1. bag width:85mm-210mm
2. bag height:140mm -280mm
3. Volume:(powder) ≤350g (liquid) 5-300 ml (according to the proportion of materials)
4. Voltage:380V(three-phase four -wire )
5. Power: 3KW
6. Filling precision:≤±1%
7. Air pressure: 0.6-0.8Mpa
8. Air consumption: 0.8m3/min
9. Dimensions:3000* 1100*2050mm
10. Weight:1000 kg
