CF-2W-5L顆粉稱重機
   本機采用PLC控製係統與稱重反饋係統相結合，以螺杆進料方式來實現不同劑量的灌裝。精確的稱重係統使灌裝精度更高，適用於粉劑，顆粒劑的大容量充填。本機符合GMP要求。
主要參數
生產速度：
2    適用範圍：  0.5-5kg
3    計量誤差  :   ≤±3‰
4    電源：     380V  三相四線
5   總功率：      2KW
6   工作氣壓：   0.5-0.7Mpa
7  耗氣量：    0.3m3/min
8   外形尺寸：  2620mm×1198mm×2788mm
9   機器重量 ：  800kg

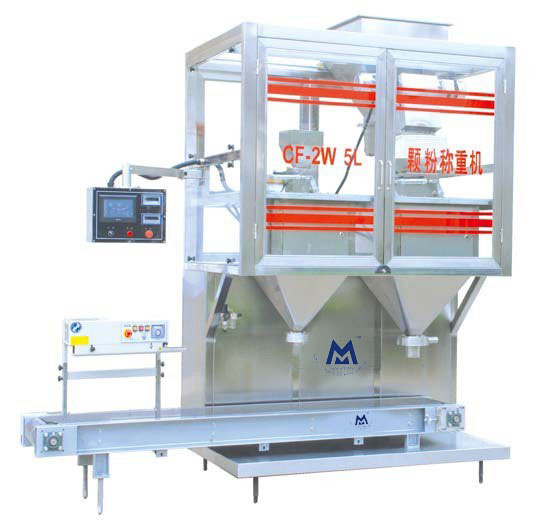

CF- 2W-5L granules and powder packing weighing machine
The machine adopts PLC programmable control system and weighing feedback system, screw material feeding to realize quantitative packing.  The weighing feedback system ensures better precision, so it is suitable for large capacity powder and granules packing. This machine is in accords with the GMP.
Main parameters:
1. Speed: ≤150 bags/hour ( test with 2KG)
2. Application:0.5-5kg
3. Packing precision: ≦3‰
4. Voltage: AC380V, three-phase four- wire
5. Power: 2KW
6. Air pressure:0.5-0.7Mpa
7.  Air consumption:  0.3m3/min
8. Dimensions: 2620*1198*2788mm
9. Weight : 800kg
